Reverse Engineering Portable Executables (PE) - Part 2#

The PE file format is a data structure that is used by Microsoft Windows programs. It is a container for all the information that is needed by the program. This includes the code, data, and resources. The file format is also used by other operating systems, but the Windows version is the most common. For example, the Portable Executable (PE) file format is used for executables and dynamic-link libraries (DLLs).

Here’s a high-level overview of the PE file format:

pefile

PE/COFF file format#

Portable Executable (PE) is the binary file format that Microsoft Windows uses for executables, dynamic link libraries, and others.

PE is gotten from the Common Object File Format (COFF) specification, which is additionally utilized by most Unix executables. The name portable (compact) comes from the way that the configuration isn’t design explicit.

Portable Executable#

PE is divided into many headers and sections; we will not cover every single byte in the PE file format for many reasons:

  1. It could probably require an entire book to do that

  2. The entries you will find depend mostly on how the executable was built (compiled)

  3. We need to focus on the maximum vital parts of PE for this collection of articles

For a detailed poster of the PE file format, check Ange Albertini’s Corkami project:

pefile

The following file types use the PE file format:

  • .exe - executable

  • .dll - dynamic link library

  • .efi - Extensible Firmware Interface file. EFI files are boot loader executables

  • .mui - Multilingual User Interface file which contain assets that permit changing the Windows point of interaction to show unique dialects.

  • .ocx - ActiveX Forms

  • .acm - Audio Compression Manager

  • .ax - MPEG-4 DVD filter

  • .scr - Screensaver

  • .sys - Device driver

  • .tsp - Windows Telephony Service Provider file

  • .cpl - Control Panel

  • .drv - Driver file (kernel)

All of the types listed can be executed, some, for example, .exe and .scr, can be executed straightforwardly through the Windows Shell (Explorer.exe), while others, for example, .dll records, require one more program or administration to run them.

The type of file is defined at compile time (e.g. exe or dll).

Mainly PE is divided into Headers and Sections. Let’s start analyzing them and understanding their details.

File Headers#

The main file headers are:

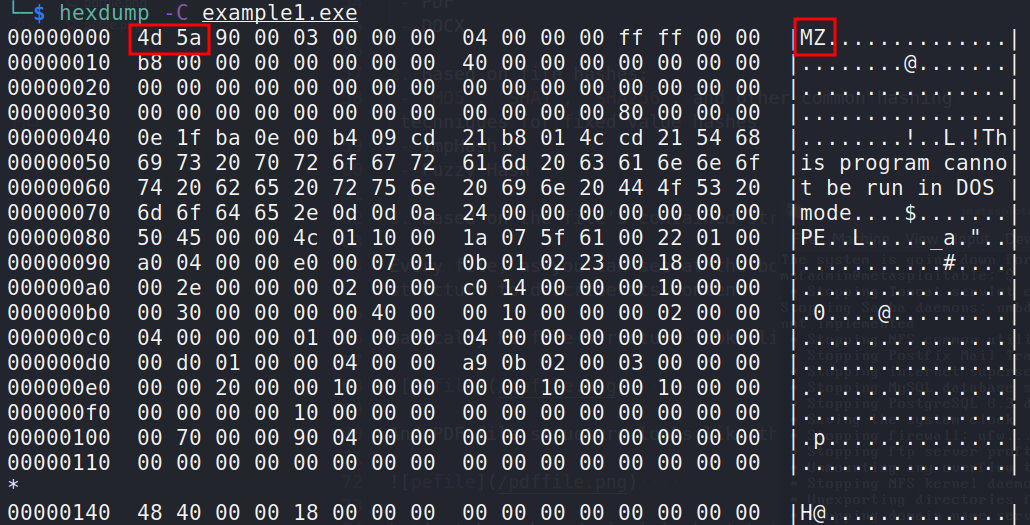

MS-DOS Header - This is the beginning of the PE file (offset zero) which starts with the magic (signature) value “MZ” or 0x5A4D. The value “MZ” are the initials of the PE designer Mark Zbikowski:

dos

The two important fields in this header are:

  • e_magic - Signature: MZ. Every portable executable will begin with this sequence

  • e_lfanew: DWORD offset to new PE header that includes PE\0\0

The data structure of this header could be seen in the following C code:

typedef struct _IMAGE_DOS_HEADER {      // DOS .EXE header
    WORD   e_magic;                     // Magic number
    WORD   e_cblp;                      // Bytes on last page of file
    WORD   e_cp;                        // Pages in file
    WORD   e_crlc;                      // Relocations
    WORD   e_cparhdr;                   // Size of header in paragraphs
    WORD   e_minalloc;                  // Minimum extra paragraphs needed
    WORD   e_maxalloc;                  // Maximum extra paragraphs needed
    WORD   e_ss;                        // Initial (relative) SS value
    WORD   e_sp;                        // Initial SP value
    WORD   e_csum;                      // Checksum
    WORD   e_ip;                        // Initial IP value
    WORD   e_cs;                        // Initial (relative) CS value
    WORD   e_lfarlc;                    // File address of relocation table
    WORD   e_ovno;                      // Overlay number
    WORD   e_res[4];                    // Reserved words
    WORD   e_oemid;                     // OEM identifier (for e_oeminfo)
    WORD   e_oeminfo;                   // OEM information; e_oemid specific
    WORD   e_res2[10];                  // Reserved words
    LONG   e_lfanew;                    // File address of new exe header
  } IMAGE_DOS_HEADER, *PIMAGE_DOS_HEADER;

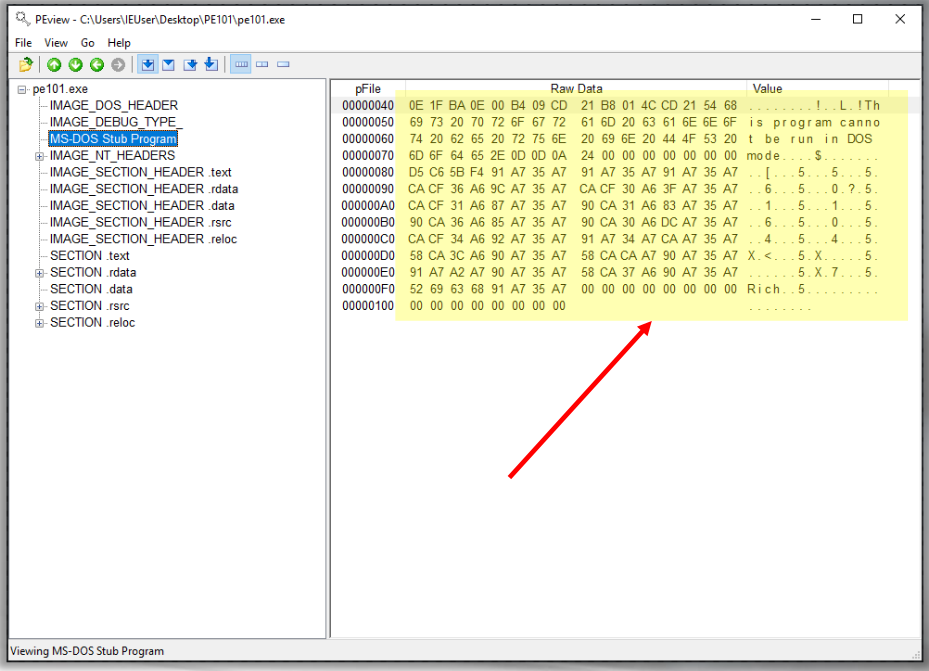

MS-DOS Stub - In the event that an executable record can’t run under MS-DOS, the system will print the blunder message “This program can’t be run in DOS mode.”, then, at that point, end:

stub

PE-Headers - This section is short and merely contains the magic bytes PE\0\0 or 50 45 00 00.

Here we can see the COFF File Header for 32-bit programs in C data structure:

typedef struct _IMAGE_NT_HEADERS {
    DWORD Signature;
    IMAGE_FILE_HEADER FileHeader;
    IMAGE_OPTIONAL_HEADER32 OptionalHeader;
} IMAGE_NT_HEADERS32, *PIMAGE_NT_HEADERS32;

or for 64-bit:

typedef struct _IMAGE_NT_HEADERS64 {
    DWORD Signature;
    IMAGE_FILE_HEADER FileHeader;
    IMAGE_OPTIONAL_HEADER64 OptionalHeader;
} IMAGE_NT_HEADERS64, *PIMAGE_NT_HEADERS;

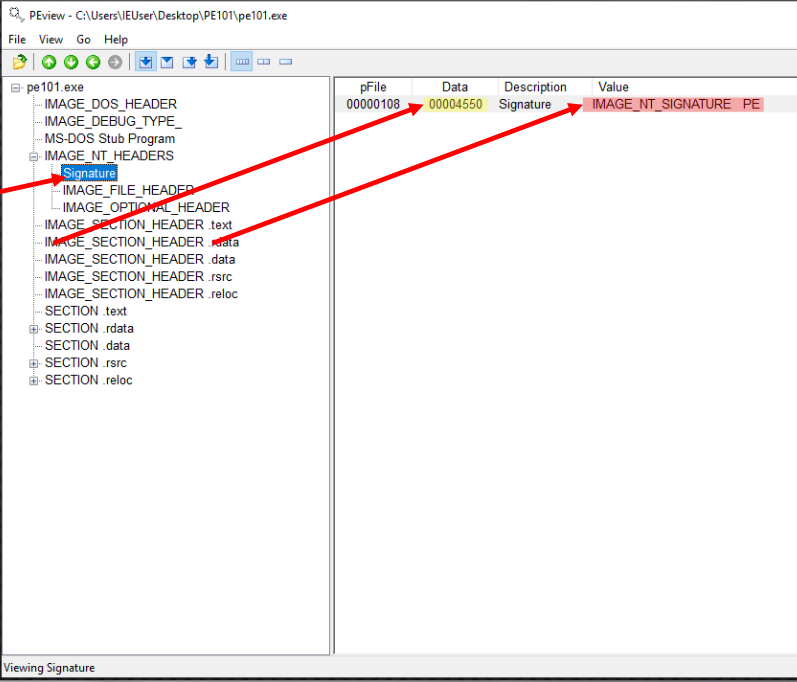

PEView will show the PE\0\0 or 0x50450000 which reflects the PE file signature if you expand the IMAGE NT HEADERS and check the Signatures tab:

pe

COFF File Header - After that comes the standard COFF file header:

ypedef struct _IMAGE_FILE_HEADER {
    WORD    Machine;
    WORD    NumberOfSections;
    DWORD   TimeDateStamp;
    DWORD   PointerToSymbolTable;
    DWORD   NumberOfSymbols;
    WORD    SizeOfOptionalHeader;
    WORD    Characteristics;
} IMAGE_FILE_HEADER, *PIMAGE_FILE_HEADER;

The most important fields are:

Machine - Identifies the target machine that this program could be used on NumberOfSections - Shows the number of sections this program has. TimeDateStamp - The date the file was produced (since 00:00 January 1, 1970). It could be utilized for intelligence and investigation, but be cautious because it is readily modified. Characteristics - Indicates the attributes of the file.

The most known Machine types are:

IMAGE_FILE_MACHINE_AMD64 with (value is: 0x8664) - x64. If IMAGE_FILE_MACHINE_I386 (value is: 0x14c) - Intel 386 or later. IMAGE_FILE_MACHINE_ARM (0x1c0) - ARM little endian. IMAGE_FILE_MACHINE_ARM64 (0xaa64) - ARM64 little endian. IMAGE_FILE_MACHINE_POWERPC (0x1f0) - Power PC little endian.

The following flag values are examples of those found in the characteristics field:

IMAGE_FILE_EXECUTABLE_IMAGE - Used exclusively for images, this code indicates that the picture file is legitimate and ready to run. IMAGE_FILE_LARGE_ADDRESS_ AWARE - Application can handle > 2-GB addresses. IMAGE_FILE_32BIT_MACHINE - Machine is using a 32-bit word architecture. IMAGE_FILE_SYSTEM - The image file is a system file, not a user program. IMAGE_FILE_DLL - The image file is a dynamic-link library (DLL).

The IMAGE_FILE_DLL specifies whether or not this is a DLL. An EXE and a DLL are distinguished by a single bit. Remember that DLLs require the use of another program to run.

Let’s move on to the next header…

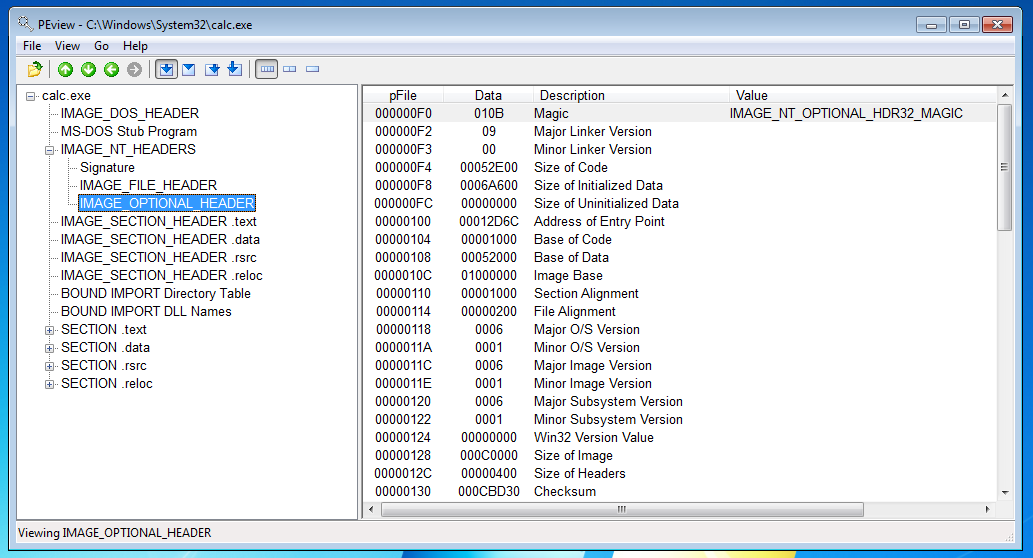

Optional Header - is not actually optional, especially for executables. It contains all of the data that the loader needs to load the program:

typedef struct _IMAGE_OPTIONAL_HEADER {
    //
    // Standard fields.
    //

    WORD    Magic;
    BYTE    MajorLinkerVersion;
    BYTE    MinorLinkerVersion;
    DWORD   SizeOfCode;
    DWORD   SizeOfInitializedData;
    DWORD   SizeOfUninitializedData;
    DWORD   AddressOfEntryPoint;
    DWORD   BaseOfCode;
    DWORD   BaseOfData;

    //
    // NT additional fields.
    //

    DWORD   ImageBase;
    DWORD   SectionAlignment;
    DWORD   FileAlignment;
    WORD    MajorOperatingSystemVersion;
    WORD    MinorOperatingSystemVersion;
    WORD    MajorImageVersion;
    WORD    MinorImageVersion;
    WORD    MajorSubsystemVersion;
    WORD    MinorSubsystemVersion;
    DWORD   Win32VersionValue;
    DWORD   SizeOfImage;
    DWORD   SizeOfHeaders;
    DWORD   CheckSum;
    WORD    Subsystem;
    WORD    DllCharacteristics;
    DWORD   SizeOfStackReserve;
    DWORD   SizeOfStackCommit;
    DWORD   SizeOfHeapReserve;
    DWORD   SizeOfHeapCommit;
    DWORD   LoaderFlags;
    DWORD   NumberOfRvaAndSizes;
    IMAGE_DATA_DIRECTORY DataDirectory[IMAGE_NUMBEROF_DIRECTORY_ENTRIES];
} IMAGE_OPTIONAL_HEADER32, *PIMAGE_OPTIONAL_HEADER32;

opt

The most important header fields are:

Signature/Magic - Represents PE32 for 32-bit (0x10b) and PE32+ for 64-bit (0x20B) AddressOfEntryPoint - A relative address to the image base, where the execution starts from. ImageBase - The preferred address of the first byte of image when loaded into memory; must be a multiple of 64K. The default for DLLs is 0x10000000. The default for most Windows EXEs is 0x00400000. SectionAlignment - The alignment (in bytes) of sections when they are loaded into memory. It must be greater than or equal to FileAlignment. The default, is the page size for the architecture. FileAlignment - The alignment factor (in bytes) used to align the raw data of the image file’s parts. A power of 2 between 512 and 64K, inclusive, should be used. 512 is the default value. If SectionAlignment is smaller than the page size of the architecture, FileAlignment must match SectionAlignment.

MajorOperatingSystemVersion - The major version number of the required operating system. MajorSubsystemVersion - The major version number of the subsystem. SizeOfImage - The size of the image in bytes, including all headers, which must be a multiple of SectionAlignment. Subsystem - The subsystem that is required to run this image. DLLCharacteristics - The DLL characteristics of the image.

Some people believe that the OS executes the .exe file from the beginning (offset zero), which is incorrect.

The execution of the program begins at the address specified in AddressOfEntryPoint.

How the PE-file is presented on disk and memory#

There are a few topics that need to be clarified before we proceed with our dissection of the PE file. These are the ones:

  • Relative Virtual Address (RVA)

  • Base Address

  • Virtual Address (VA)

Let’s go and explain these, which are extremely important.

On a 32-bit operating system, each process is guaranteed 4GB of virtual memory, which means that each process will have a memory address range of 0x00000000 to 0xFFFFFFFF.

Let’s pretend we have the following example, which displays how the file appears on disk:

mem

An example of a VA based on last picture is 0x00400108, which is the address of where the PE File header is loaded in memory.

A Virtual Address (VA) is nothing more than a memory address in that address space. This address has nothing to do with real memory addresses because we are dealing with virtual addresses rather than physical memory address space.

Now, the location of the PE File header address we discovered is entirely dependent on where the image is loaded. The ImageBase notion comes into play here. This value is defined in the Optional Header, but just because the program tells the OS where it wants its image file to be loaded doesn’t imply the OS will do so.

Therefore, the VA will depend first on where the image file is loaded in memory and then on the Relative Virtual Address (RVA).

We can calculate RVA with the help of the following formula: RVA = VA - ImageBase

For example VA for the MS-DOS Header in our example:

VA = Image base + RVA = 0x00400000 + 0x0 = 0x00400000

RVA for the Optional Header:

Virtual Address - ImageBase = 0x00400120 - 0x00400000 = 0x120

What about VA for the Resource Section Header?

VA = Image base + RVA = 0x00400000 + 0x278 = 0x000400278

Just remember, everything depends on where the ImageBase is loaded.

Sections#

It is time to go over the sections and understand what they are.

Section Table - This array of structures is found immediately after the PE Optional Header. This table consists of an array of IMAGE_SECTION_HEADER structures.

The field NumberOfSections in the COFF header is where the quantity of sections is characterized.

IMAGE_SECTION_HEADER structure:

typedef struct _IMAGE_SECTION_HEADER {
    BYTE    Name[IMAGE_SIZEOF_SHORT_NAME];
    union {
            DWORD   PhysicalAddress;
            DWORD   VirtualSize;
    } Misc;
    DWORD   VirtualAddress;
    DWORD   SizeOfRawData;
    DWORD   PointerToRawData;
    DWORD   PointerToRelocations;
    DWORD   PointerToLinenumbers;
    WORD    NumberOfRelocations;
    WORD    NumberOfLinenumbers;
    DWORD   Characteristics;
} IMAGE_SECTION_HEADER, *PIMAGE_SECTION_HEADER;

.text section - this is the first section found in a PE file, and it is where the code of the program is found:

text

On the off chance that there is anything else in this segment, really take a look at it cautiously in light of the fact that it could be suspicious.

.data section - this is where the initialized data of the program is found. Example of data found here are global and static variables that are initialized at compile time, plus the it includes string literals.

data

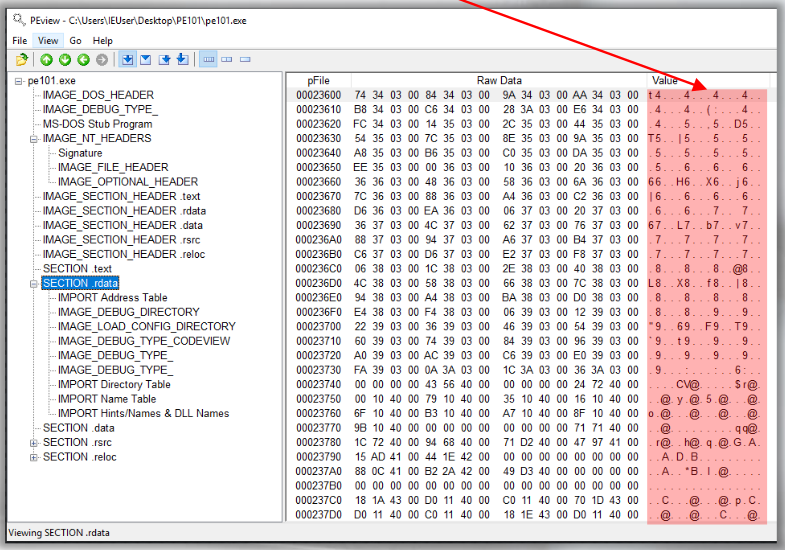

.rdata section - this is where the import information or read-only initialized data is located. The name depends on the compiler and linker used.

.rdata

.rsrc section - this is where the resource information of the image is found:

.rsrc

Don’t try to memorize all of the fields and values now. You will get more experienced in them as you move on with your career as a malware analyst.

In the next blog post of our series we talk about identifying obfuscation: how threat actors use trick to hide their malware.

External resources:

PEView
PE bear
MSDN PE format
corkami
An In-Depth Look into the Win32 Portable Executable File Format
An In-Depth Look into the Win32 Portable Executable File Format, Part 2
MSDN IMAGE_NT_HEADERS
MSDN IMAGE_FILE_HEADER
MSDN IMAGE_OPTIONAL_HEADER
MSDN IMAGE_DATA_DIRECTORY
